The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
Switch

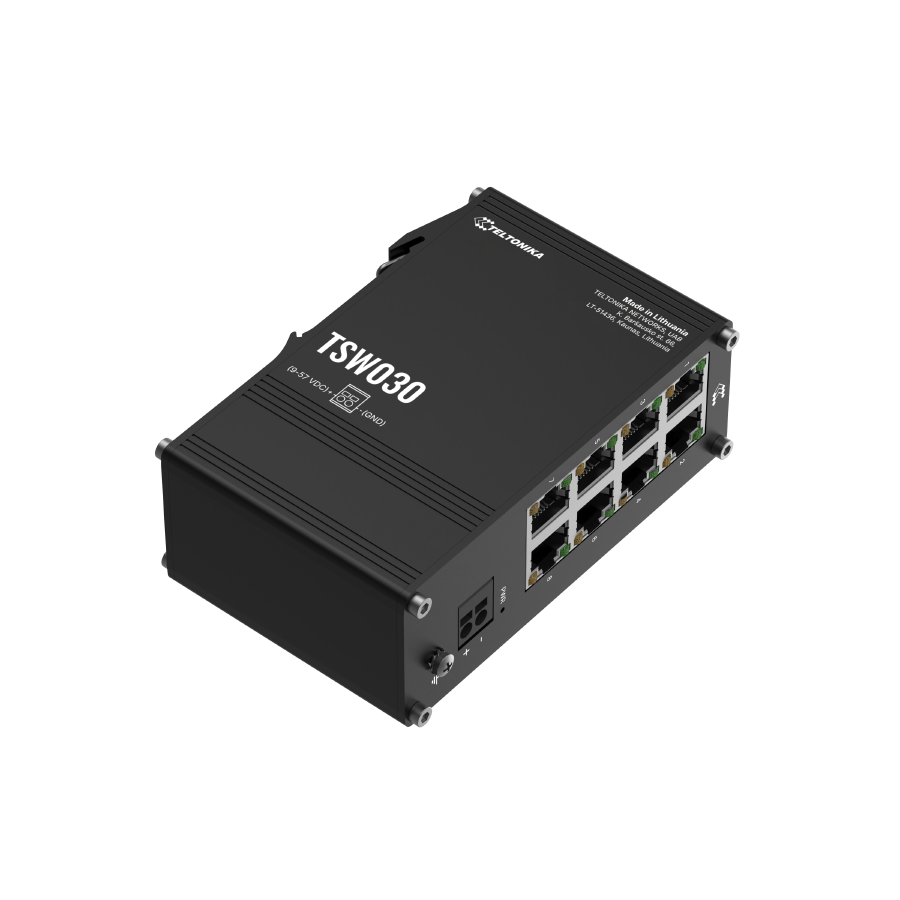

Teltonika TSW030
SKU: TSW030
8-port industrial Ethernet switch.
Specs
| Ethernet | 8 x RJ45 ports, 10/100 Mbps |
| Bandwidth | 20 Gbps non-blocking |
| Power | 7–57 VDC, 2-pin connector |
| Consumption | Idle: 0.5 W / Max: 1.5 W |
| Dimensions | 113.1 x 41.2 x 74.6 mm, 256 g |
Specifications may vary by version or region — please verify on the manufacturer's site.
Quote
Send us the quantity and intended deployment. We'll reply with a quote within 24 hours.
Request a quote →
