Industrial LTE Cat 4 gateway packs all essential features for any industry: fast and reliable internet connection, combination of Ethernet and serial communication, secure power connector, I/O ports, and time synchronization services
TRB245 can be used to integrate modern and legacy industrial equipment in one solution via RS232 or RS485 interfaces.
Gateway

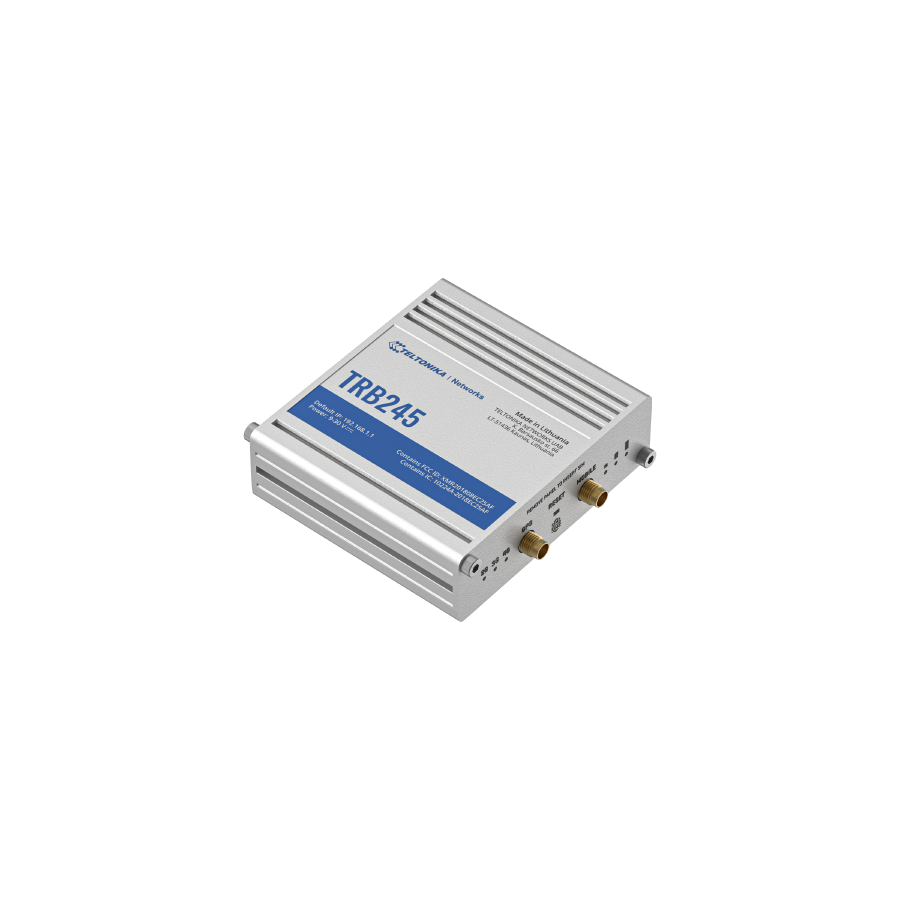

Teltonika TRB245
SKU: TRB245
LTE Cat 4 gateway with RS232/RS485 and I/O. For M2M and remote PLC monitoring.
Specs
| Cellular | LTE Cat 4 (150 Mbps), 3G, 2G |
| SIM | 2x Mini SIM (2FF) |
| Ethernet | 1 x RJ45, 10/100 Mbps |
| Serial | RS232 (terminal block: TX, RX, RTS, CTS), RS485 (terminal block: D+, D-, R+, R-), 300–3,000,000 baud |
| I/O | 3x Configurable Digital I/O, 1x Analog Input |
| Antenna | 1 x SMA for LTE, 1 x SMA for GNSS |
| Power | 9–30 VDC, 2-pin connector |
| Dimensions | 74.2 x 83.0 x 25.0 mm, 165 g |
Specifications may vary by version or region — please verify on the manufacturer's site.
Quote
Send us the quantity and intended deployment. We'll reply with a quote within 24 hours.
Request a quote →
